Grooved and Pressed Piping Systems
SPFA is an authorised distributor of globally recognised mechanical piping systems, delivering advanced grooved and Press-Fit solutions engineered for fast installation, long-term reliability, and high-performance operation across industrial and commercial applications.
Our range includes precision engineered grooved couplings, fittings, valves, grooved pipe, advanced Press-Fit systems and specialised grooving and pressing equipment, all supported by in-house cutting and grooving capabilities and technical expertise.
Available in painted carbon steel, galvanised carbon steel, and comprehensive stainless steel configurations, these systems are trusted worldwide and proven in some of Australia’s most demanding operating environments.
Why Choose Mechanical Grooved and Pressed Systems?
NO HOT WELDING OR HOT WORKS
Flame free installation enhances site safety, eliminates the need for hot works permits, and reduces project risk.
FAST INSTALLATION
Mechanical joining systems significantly reduce installation time and labour requirements compared with welded or flanged systems.
FLEXIBLE AND SECURE
Designed to accommodate vibration, thermal expansion, and system movement while maintaining secure, leak-tight performance.
SIMPLIFIED MAINTENANCE
Systems can be easily accessed, modified, expanded, or replaced without the need for re-welding.
LOWER INSTALLATION COST
Reduced labour dependency, downtime, and installation complexity contribute to lower overall project costs.

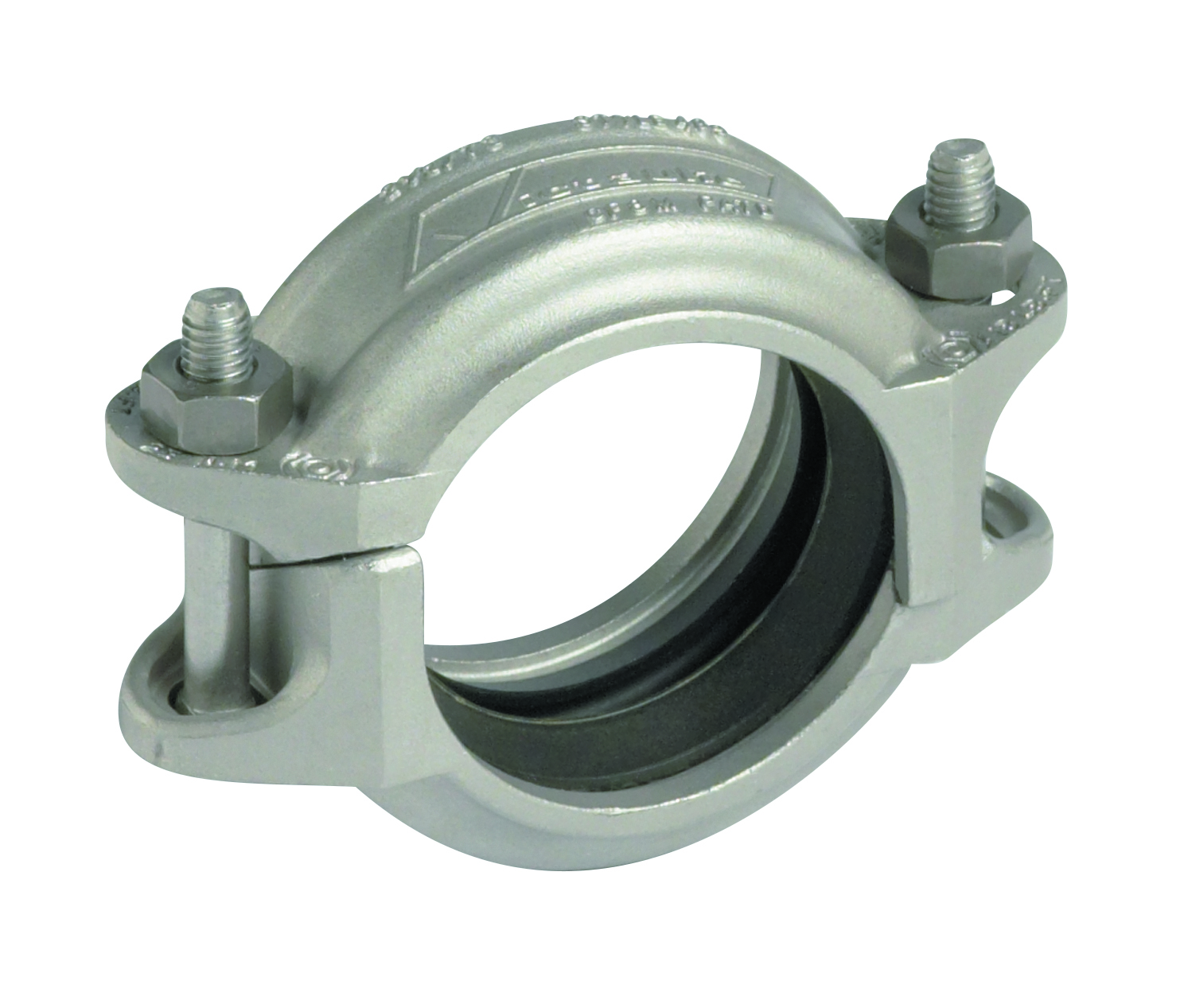

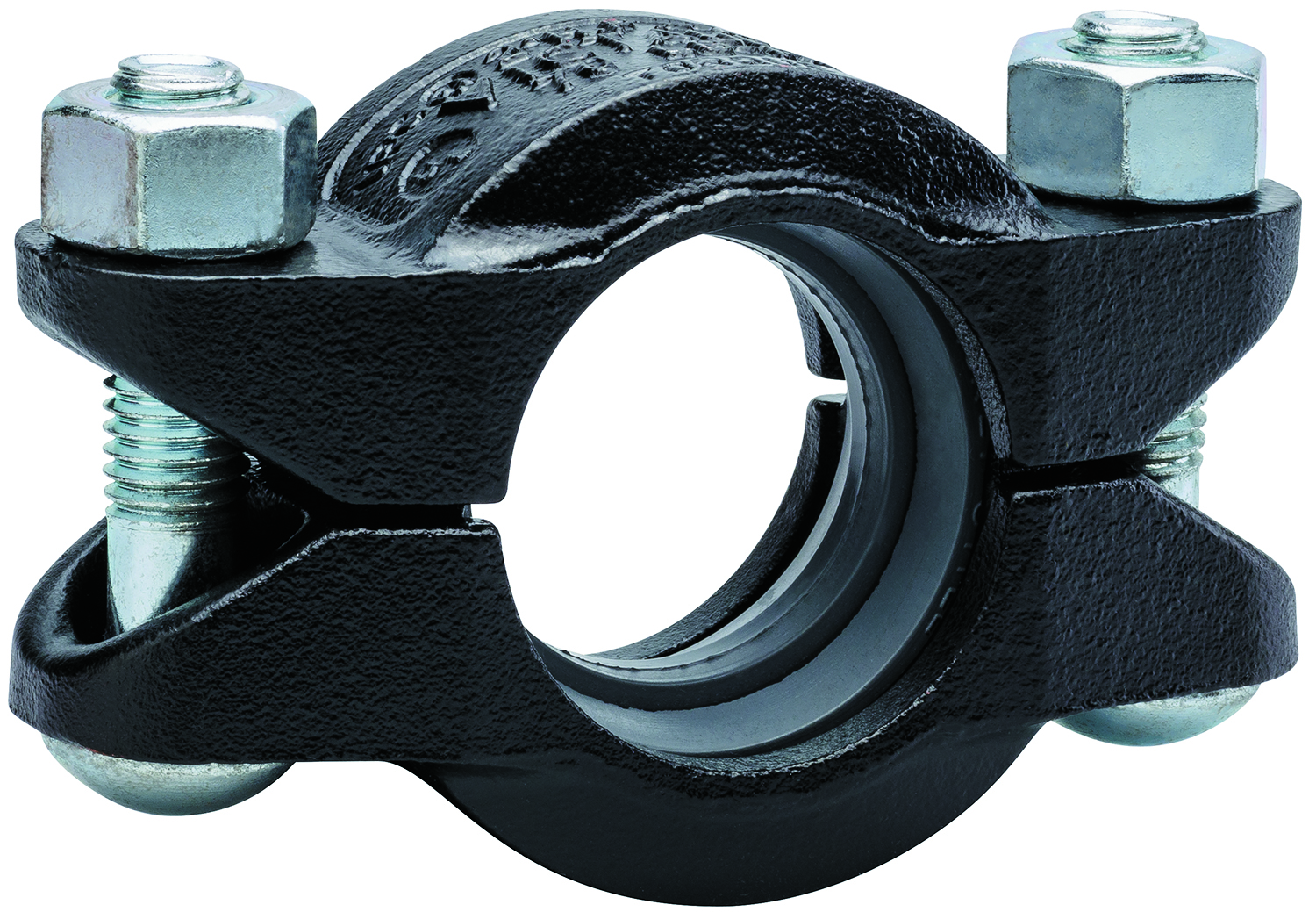

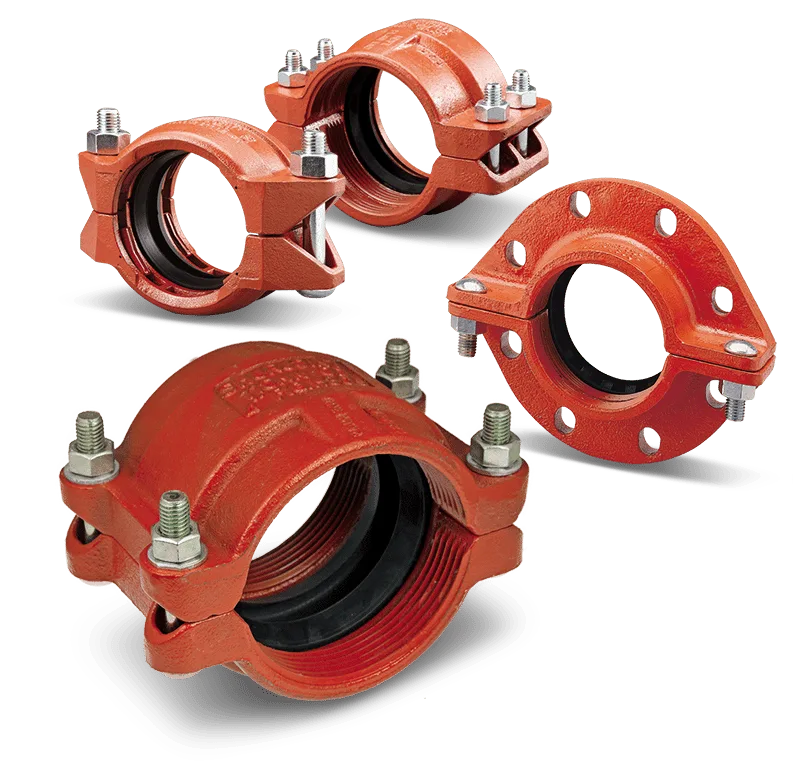

Available in:
• Rigid and flexible configurations
• High-strength ductile iron construction
• Standard painted and galvanised finishes
• Full stainless steel options for corrosive environments
• Multiple gasket grades including EPDM, NBR, silicone, neoprene, and specialised compounds
Engineered to deliver secure, leak-tight performance across HVAC, fire protection, water, mining, oil and gas, marine, and heavy industrial applications.

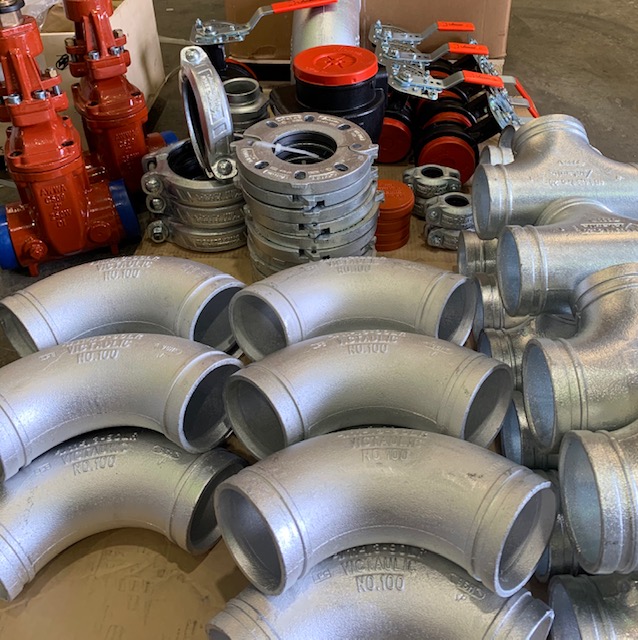

Configurations include:
• 11¼°, 22½°, 45°, and 90° elbows (standard, short, and long radius)
• Equal and reducing tees
• Reducers, caps, and crosses
• Mechanical tees
• Fabricated bends
Available in painted, hot-dip galvanised, and stainless steel finishes.

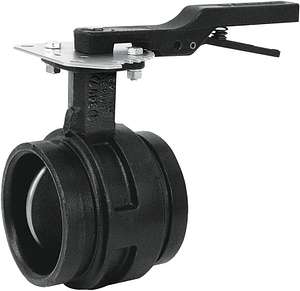

• Butterfly valves

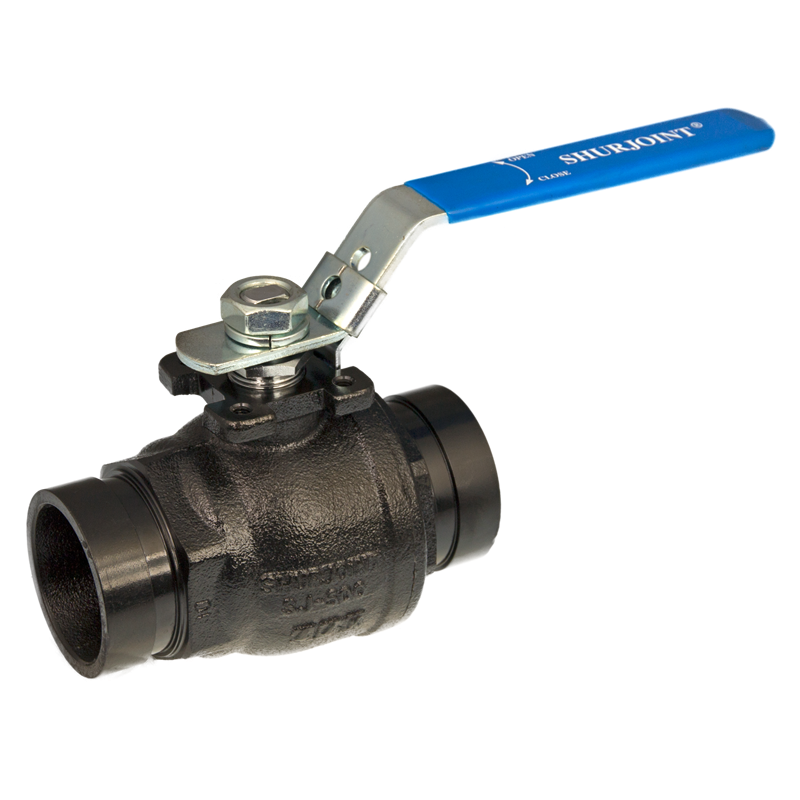

• Ball valves
• Check valves
• Gate valves
• Ductile iron, carbon steel, and stainless steel options
• Pressure ratings suited to demanding industrial applications
The SPFA Press-Fit system provides a fast, consistent, and flame free alternative to welding and threading for carbon steel and stainless steel piping systems.
Using precision engineered press fittings and dedicated pressing tools, joints are completed quickly with repeatable installation quality and minimal disruption.
KEY BENEFITS
• No welding or hot works permits required
• Faster installation times
• Minimal disruption to operational environments
• Consistent joint integrity
• Cleaner and safer worksites
Suitable for HVAC, water services, compressed air, industrial process piping, and commercial mechanical systems.
Suitable for:
• Food and beverage
• Pharmaceutical
• Marine
• Water treatment
• Industrial processing

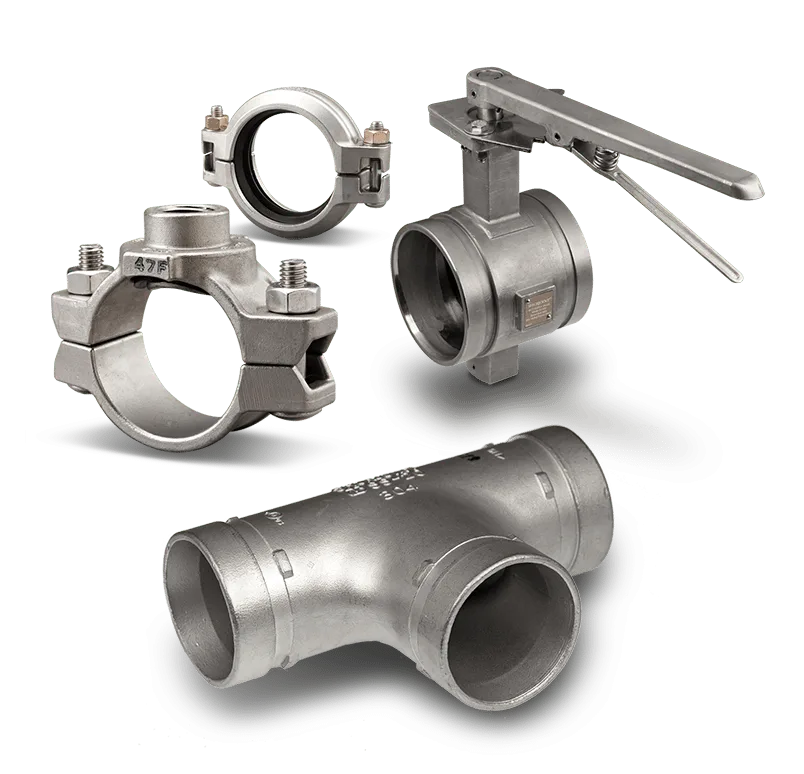

Stainless steel systems deliver extended service life, superior corrosion resistance, and reduced lifecycle costs.

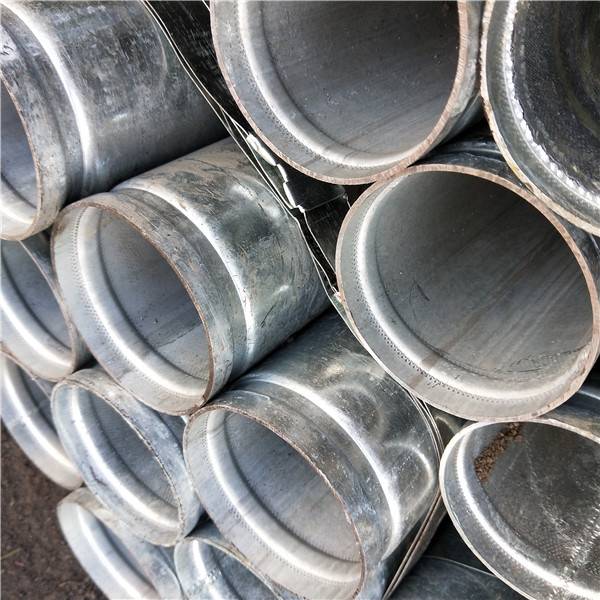

• Carbon Steel Painted and Galvanised, and stainless steel
• Standard lengths or cut-to-size configurations
• Roll grooved and or cut grooved to precise specifications
All grooving is performed to ensure full compatibility with mechanical coupling systems and compliance with relevant international standards.
As an authorised distributor, SPFA supplies specialised grooving and pressing equipment engineered specifically for mechanical piping systems.
Whether for workshop fabrication or on-site installation, we provide reliable, high performance equipment backed by technical guidance and after-sales support.
CUT GROOVING MACHINES
Engineered for heavy wall pipe and specialised applications requiring precise groove geometry.
Features include:
• Machined grooves to exact tolerances
• Suitable for thick wall carbon and stainless steel pipe
• Designed to meet mechanical piping compliance standards
PRESSING MACHINES
Professional grade pressing tools specifically designed for Press-Fit systems.
Features include:
• Uniform joint compression
• Fast cycle times
• Repeatable installation quality
• Portable and battery powered options available
• Increased on-site productivity
Correct pressing equipment is essential to ensure certified joint performance and long term system reliability.
• Mining and Heavy Industry
• Oil and Gas
• Water and Wastewater
• HVAC and Mechanical Services
• Marine
• Fire Protection
• Commercial Construction
• ANSI/AWWA C606
• ASTM F1476
• ASTM F1548
Products are supported by comprehensive manufacturer warranties, providing confidence in long-term performance across critical infrastructure and industrial projects.
