Specialised Pressure Fittings

HIGH PRESSURE SOCKET WELD, THREADED, SWAGES, NIPPLES AND OLETS
Product Description

This range of fittings are specifically designed for high pressure applications and are available in a range of types, sizes and pressure classes. These fittings are typically stocked in carbon, galvanised and stainless in 1/2” to 4” and in pressure classes 3000# and 6000#, however a large range of materials, sizes and pressure classes are available to meet your design requirements.

High pressure fittings are often preferred over other connection types for several reasons; Socket weld and threaded fittings are easier and quicker to install compared to butt welding fittings, which require precise alignment and welding skills. These fittings provide strong, leak-proof connections, which are crucial for high-pressure applications and are available in a wide range of types and pressure classes, making them versatile for various pressure applications. And most importantly; threaded fittings are easier to disassemble and reassemble, which simplifies maintenance and repairs.

Product Specifications
Product Name

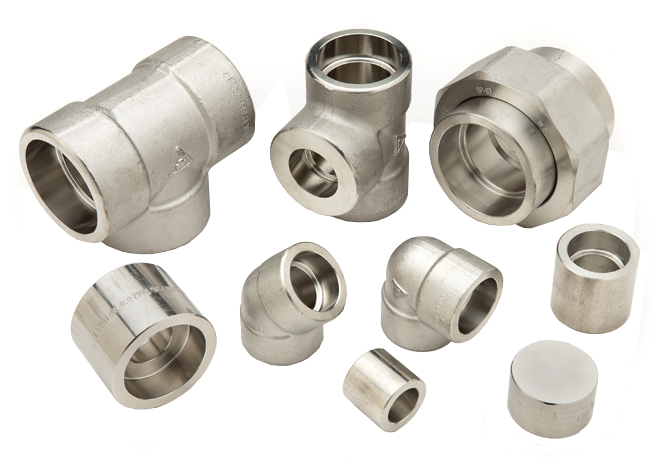

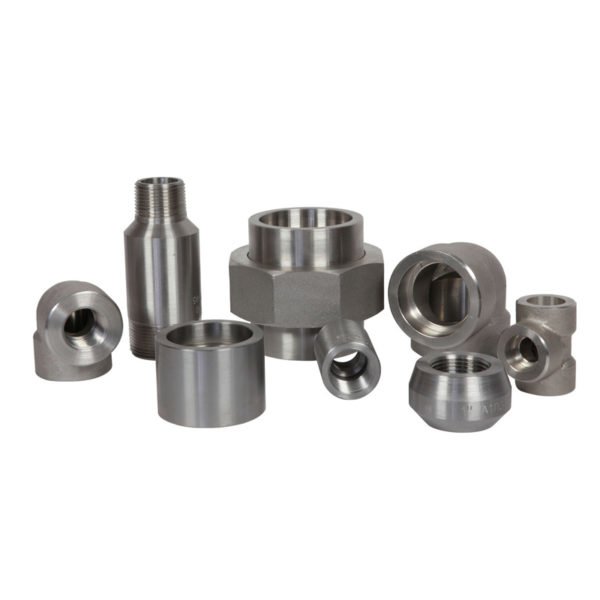

Socket Weld Fittings, Threaded Fittings, Swage Nipples, Pipe Nipples, Olets
Available Form
Pressure Class: 3000#, 6000#, 9000#
Elbows; 90° and 45°
Tees; Equal and Reducing
Reducing Couplings, Reducing Inserts
Pipe Nipples: PBE, TBE, TOExPOE
Swages; Concentric and Eccentric, butt welding and threaded
Plugs, Caps, Unions
Hex Nipples, Reducing Nipples, Bushes
Weldolets, Threadolets, Sockolets
Nipoflanges / Flangolets
Elbolets; Socket Weld, Butt Weld, Threaded
Latrolets; Socket Weld, Butt Weld, Threaded
Size Range
6NB to 150NB
Standard
ASTM A105, A182/A182M, ASTM A234/234M, ASTM A403/403M, ASTM A420/420M
Grades

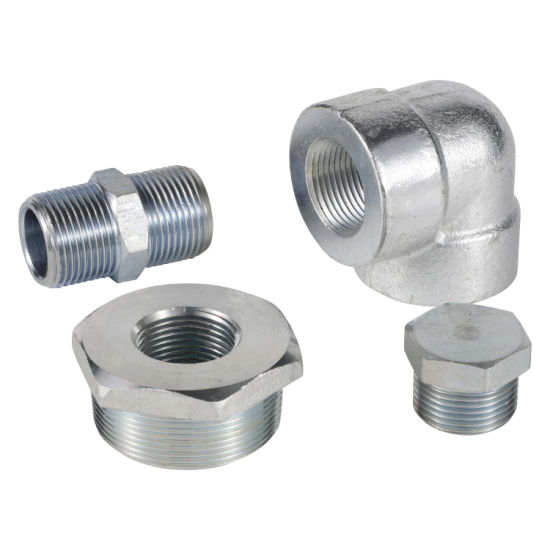

A105, WPB, Hot Dip Galvanised
F316/L, WP316/L, F304/L, WP304/L, F51 WPS31803, F60 WPS32205, F53 WPS32750
Specialised grades on request in Stainless Steel, Super Duplex, Chrome Moly, Low Temperature and Nickel Alloy.
Dimensions
ASME B1.20.1, ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799
Ends
Threaded BSP or NPT, Socket Weld, Bevelled or Plain
Finish
As Forged, Wrought, Machined or Hot Dipped Galvanised (HDG)
